CONCRETE PIPE
MAKING MACHINES
RELIABLE INDUSTRIAL SOLUTIONS
THE MEETING POINT OF TECHNOLOGY AND QUALITY IN INDUSTRIAL CONCRETE PRODUCTION
Manhole Base Making Machine
Vibrating table, external mould and internal mold, pallets, fiber cap are all components of the concrete manhole base machine. Machine is used for the production of concrete chimneys, concrete manhole base of the size Ø1000-Ø1200. The vibrating table for manhole base has a vertical level adjustment, which contributes to easy and fast operation of the equipment.
Internal and external mouldes are pre-locked and filled in with the base element in the process.
Prefabricated Installation For Support Elements

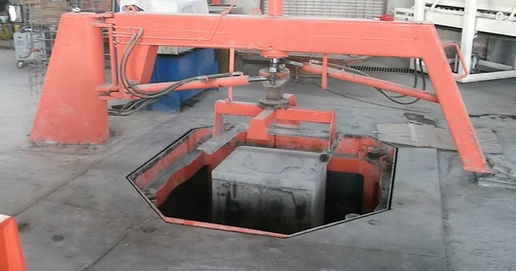

The prefabricated installation for manhole base consists of a vibrating table, internal and external mouldes of manhole base, input and output pallets and concrete feed bins.
Manhole bases produced with this machine are manufactured in such a way as to provide a sealed insert into concrete manhole base with a diameter of 1000 and 1200 mm.
Prefabricated installations for the production of manhole base with different diameters at the input and output in four directions provide fast and economical production.
The vibrator table is level-adjustable in the vertical direction. Internal and external mouldes are first fixed on top of each other, then fixed on the table and filled with the main element used in production (wide side).
Concrete Chimney Manhole Making Machine
Our factory, located in Corlu/ Tekirdag, continues to manufacture construction equipment, including concrete manhole machine and concrete manhole base machine.
This machine is used for the production of products such as concrete pipes, manhole, manhole base, concrete rings with a height of 1000 mm with dimensions of Ø300 mm and Ø1200 mm
Machine automation system is designed by CONMACH engineers and is designed for easy use by the operator. The vibration system of our machine is liquid oily and has a closed cycle.
This feature is designed for highly efficient production. The use of sheet metal, such as cold-resistant ST52-ST44-Hardox, is preferred at the production stage. The bearings inside the vibrator are resistant to wear and high temperatures.
-
620 conical chimney elements, transitions / produces 80 units per day.
-
1000 mm rings / produces 60 units. in the day.
-
1200 mm rings / produces 50 units per day.
Сoncrete mortar is supplied into the mold using a rotary hopper, and the finished concrete products are removed using a crane.
