CONCRETE
PIPE MAKING MACHINES
VIDEOS

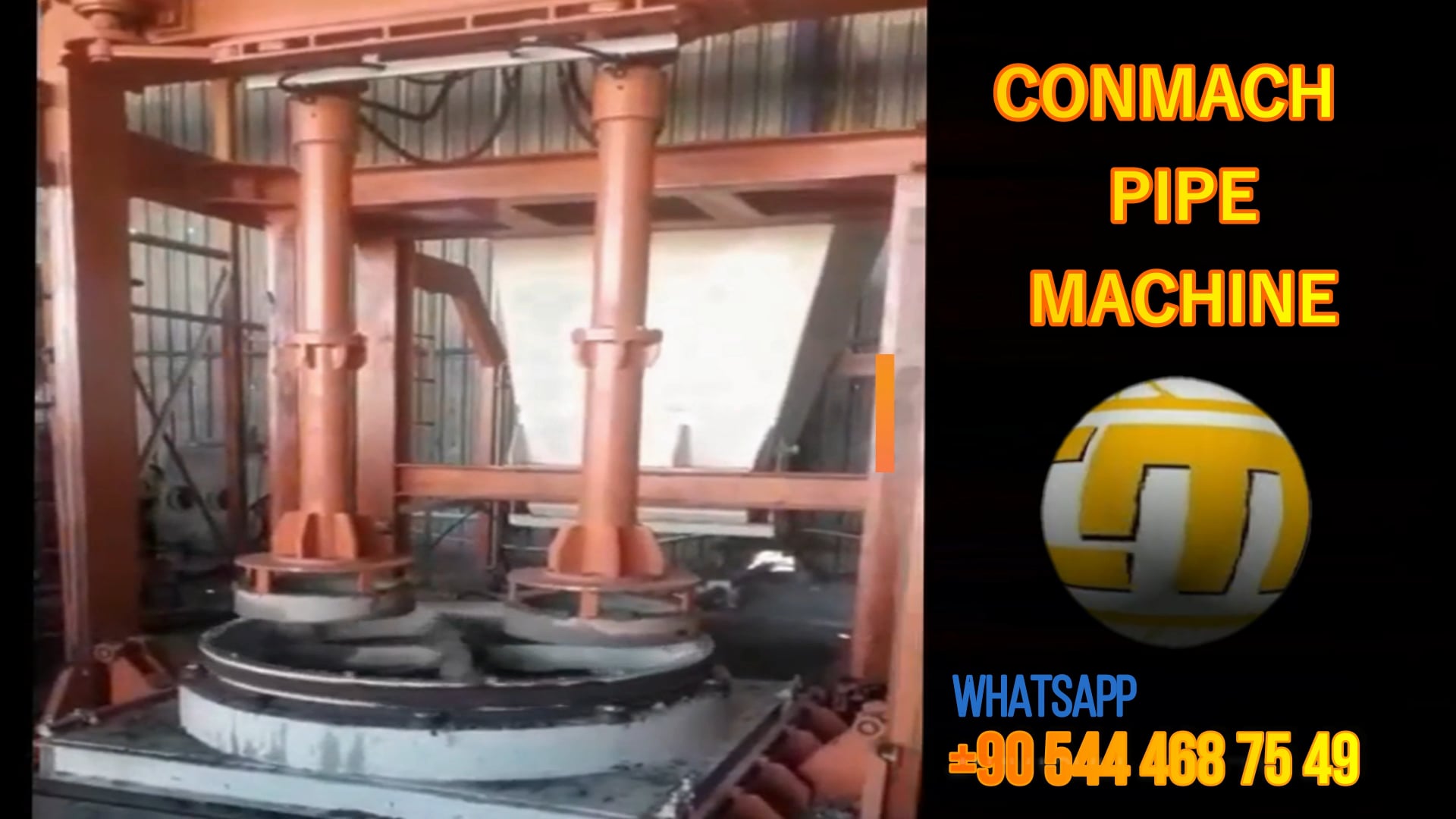

"Discover the power and precision of the Conmach Pipe Machine! This video showcases the high-efficiency manufacturing process of concrete pipes and manhole elements. See how our advanced machinery ensures structural integrity, durability, and speed in large-scale infrastructure production. Perfect for construction professionals and industrial investors looking for reliable, high-performance concrete pipe manufacturing solutions. Don't forget to like, share, and subscribe for more insights into our industrial machinery technology!"

Conmach d2.000x2.500 mm Wet type Concrete Pipe Mould was tested before getting painted and shipped to Palestine. Conmach d2.000x2.500 mm Wet type Concrete Pipe Mould was tested before getting painted and shipped to Palestine.

Conmach PipeKing-1200 Concrete Pipe Making Machine is in use during producing 200 mm concrete pipe as three at a go.

Discover high-efficiency concrete pipe production with advanced machinery designed for superior quality and durability. Watch how modern technology shapes reliable concrete pipes for infrastructure projects.

This is a 300 ton/h Crushing & Screening Plant... The plant consists of the following machines that we manufacture; * Vibrating Rock Feeder & Bunker FB-110 (1 unit) - Nominal Dimensions : 1.100 mm x 4.600 mm - Motor Power : 2 pcs x 9,2 kW @1.000 rpm - Storage : 40 m3 with 15 mm bended reinforcemented sheet - Vibrating Feeder Body : 12 mm thickness - Chassis : NPI 380 welded construction - Springs Used : 60 SiCr 7 12 Coil Springs * Primary Jaw Crusher JC-110 (1 unit) - Main Dimensions : 1.100 mm x 850 mm - Min - Max Closed Side Settings : 150 - 225 mm - Motor Power : 132 kW @1.500 rpm - Fly Wheel : 228 rpm - Casting : 16-18 Mn 2 Cr - Pitman : GS 52 cast steel - Bearing : Heavy Duty Spherical Rollber Bearing - SKF Brand * Cone Crusher HP300 (1 unit) - Main Dimensions : 1.120 mm - Motor Power : 200 kW @1.500 rpm * Feeder Bunker FB-340 (2 units) - Main Dimensions : 3.400 mm x 3.800 mm - Bunker Capacity : 22 m3 - Motor Power : 2 pcs x 1,5 kW @1.000 rpm * Vibrating Screen VS-2060-4 (2 units) - Screen Dimensions : width : 2.000 mm x length : 6.000 mm - Number of the Deck : 4 layers - Feeding Surface : 4 x 12 m2 - Drive Motor : 30 kW @1.500 rpm - Screen Slope : 18o - Stroke : 6 - 9 mm - Transmitting Speed : 0.45 m/sec - Screen Body Sheet : 12 mm bolted connection removable, shelves are made of twist sheet - Screen Shaft : 4140 quality - Screen Bearings : 22332 SKF Brand Vibrating Bearing - Screen Wire Mesh : According to the Requirement of the Customer * Automation & Electrical Control Board (1 set) - Siemens or Scheider brand equipment is used. - The plant's control is done by the piano panel with a bird's eye view of the plant - Panels are manufactured from galvanised sheet * Vibrating Screen VS-1650-2 (1 unit) - Screen Dimensions : width : 1.600 mm x length : 5.000 mm - Number of the Deck : 2 layers - Feeding Surface : 2 x 8 m2 - Drive Motor : 15 kW @1.500 rpm - Screen Slope : 18o - Stroke : 6 - 9 mm - Transmitting Speed : 0.45 m/sec - Screen Body Sheet : 10 mm bolted connection removable, shelves are made of twist sheet - Screen Shaft : 4140 quality - Screen Bearings : 22324 SKF Brand Vibrating Bearing - Screen Wire Mesh : According to the Requirement of the Customer * Vertical Shaft Crusher VSI-900 (1 unit) - Rated Size : 900 mm - Motor Power : 2 pcs x 185 kW @1.500 rpm - Screen Slope : 18o - Stroke : 6 - 9 mm - Transmitting Speed : 0.45 m/sec - Screen Body Sheet : 10 mm bolted connection removable, shelves are made of twist sheet - Screen Shaft : 4140 quality * Belt Conveyor BC (15 units) - Different width and length conveyor belts are used. * Metal Magnet MM (2 units)

Conmach PipeKing-1200 Concrete Pipe Making Machine is in use during producing 800 mm concrete pipe as one at a go.

Conmach PipeKing-1200 Concrete Pipe Making Machine is in use during producing 500 mm concrete pipe as two at a go.

Conmach PipeKing-1200 Concrete Pipe Making Machine is in use during producing 200 mm concrete pipe as three at a go.
